SP-AGV Lite Product Details

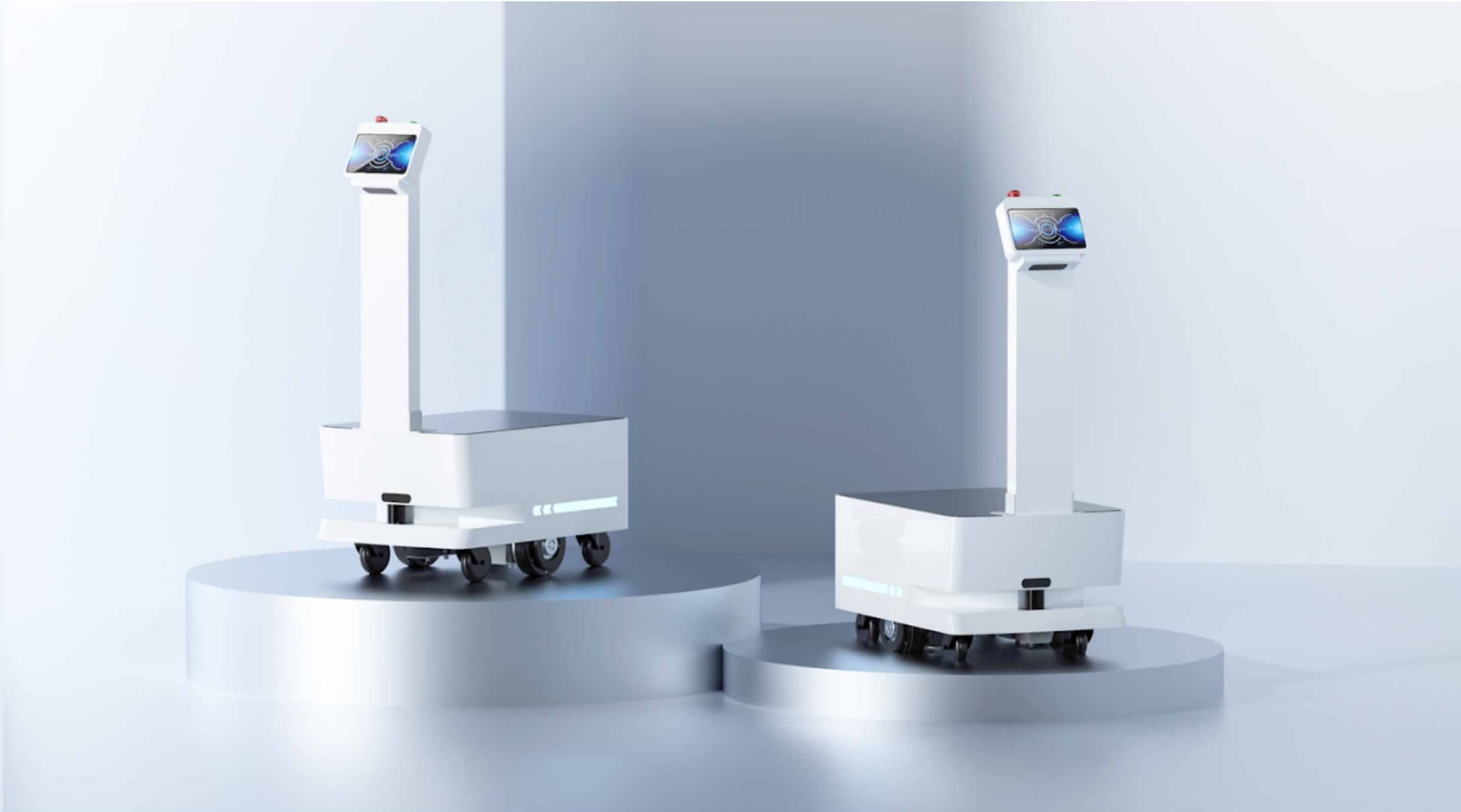

SP-AGV Lite Factory Delivery Robot

SP-AGV Lite Factory Delivery Robot

SP-AGV Lite Factory Delivery Robots has 300kG large loading capacity, 10cm lifting height, equippedwith Reeman self-developed SLAM 2.0 autonomous positioning and navigation system, no need to pastethe code, hih-precision navigation and positioning, autonomous obstacle avoidance, one-key cal.autonomous ride on the lift (optional), Open SDK platform, provide APl interface.support customized development services, to meet the handling needs of different factories

Extra Large Load Capacity

Extra Large Load Capacity

Large load capacity for a widerrange of applications

Autonomous Obstacle Avoidance

Autonomous Obstacle Avoidance

Front-facing 3D cameras + laser radar forreal-time awareness of dynamic surroundings

Autonomous dispatch system

Autonomous dispatch system

Reeman Robotics' unique autonomousscheduling system, multi-machinecollaboration, orderly operation,orderly operation

Autonomous up and down lifts

Autonomous up and down lifts

Support the docking of ladder control systemcross-floor execution of delivery tasks

Detailed Parameters

Applicable Scene

Products are widely used in factory workshops, libraries, hazardous locations, logistics and storage, special industries

Product Size

704mm(L)x470mm(W)x1148mm(H)

Maximum Load Capacity

100KG

Endurance

12h fully loaded,22h unloaded

Product Weight

About 55KG

Charging Time

About 6h

Travel Speed

0.1~1m/s

Navigation Accuracy

±10 cm

Product Material

Sheet metal

Gyroscope

Single-axis gyroscope

Motor Drive

5.5

Adapters

Input: AC110-240V 50-60HZ Output: 43.2V-5A

Charging Pile Parameters

Overcurrent protection, inteligent power failure, output rated voltage: 43.2V DC Output rated current:5A

SP-AGV Lite Product Details

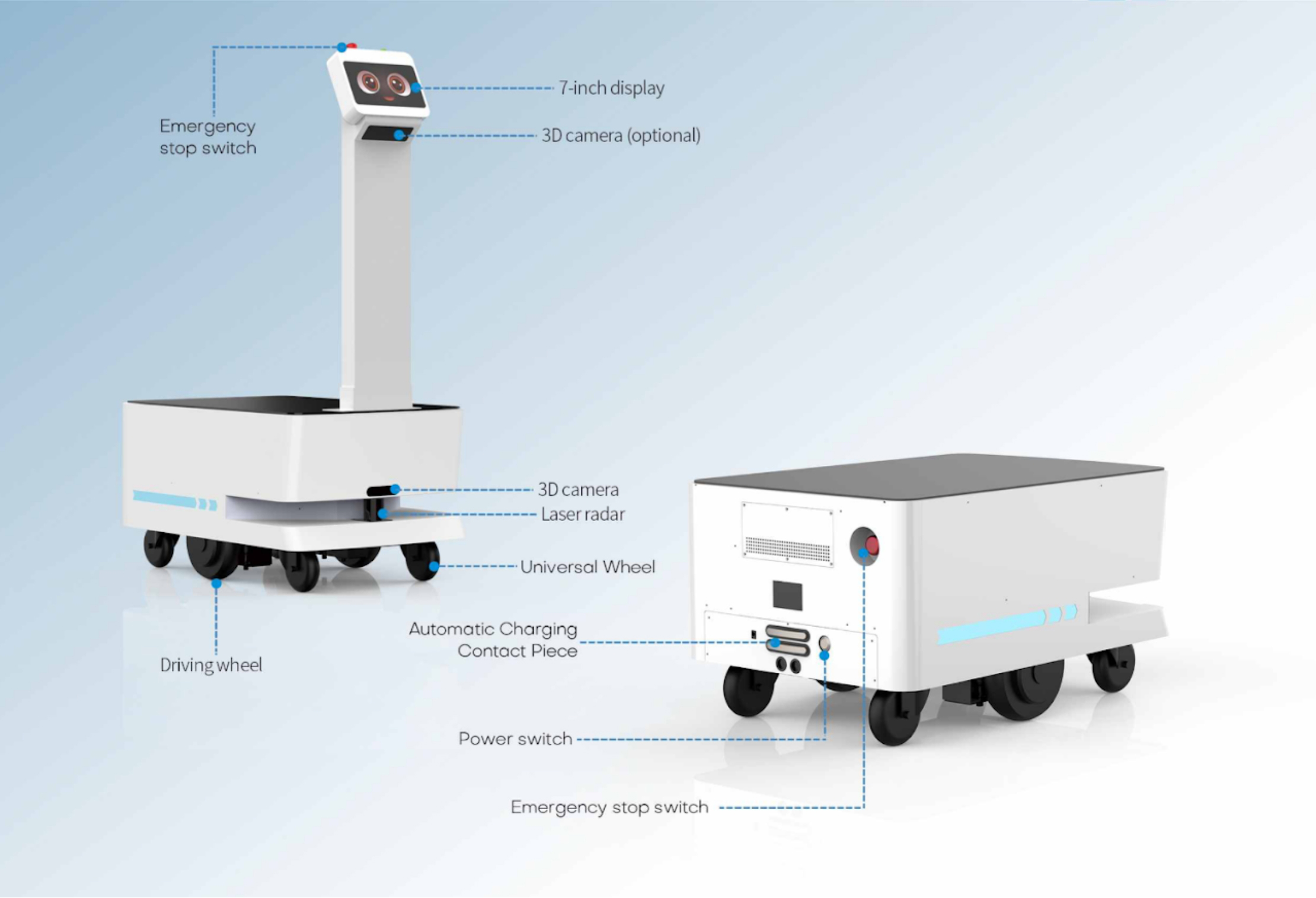

Diagram Structure

Diagram Structure
