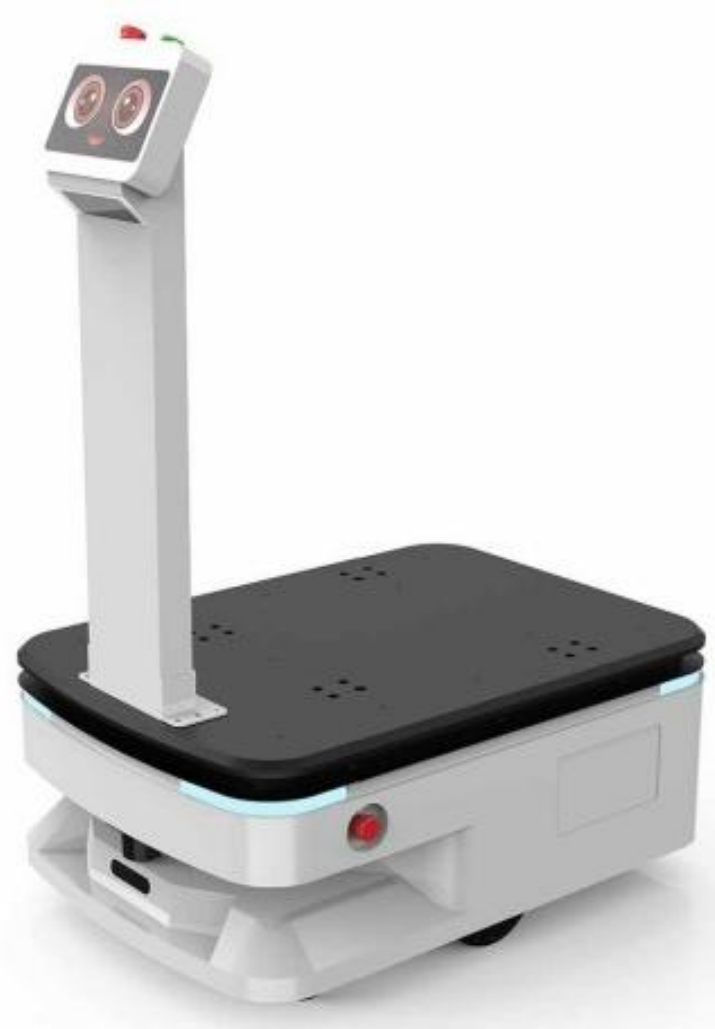

SP-AGV Pro Product Details

SP-AGV Pro Factory Delivery Robots

SP-AGV Pro Factory Delivery Robots

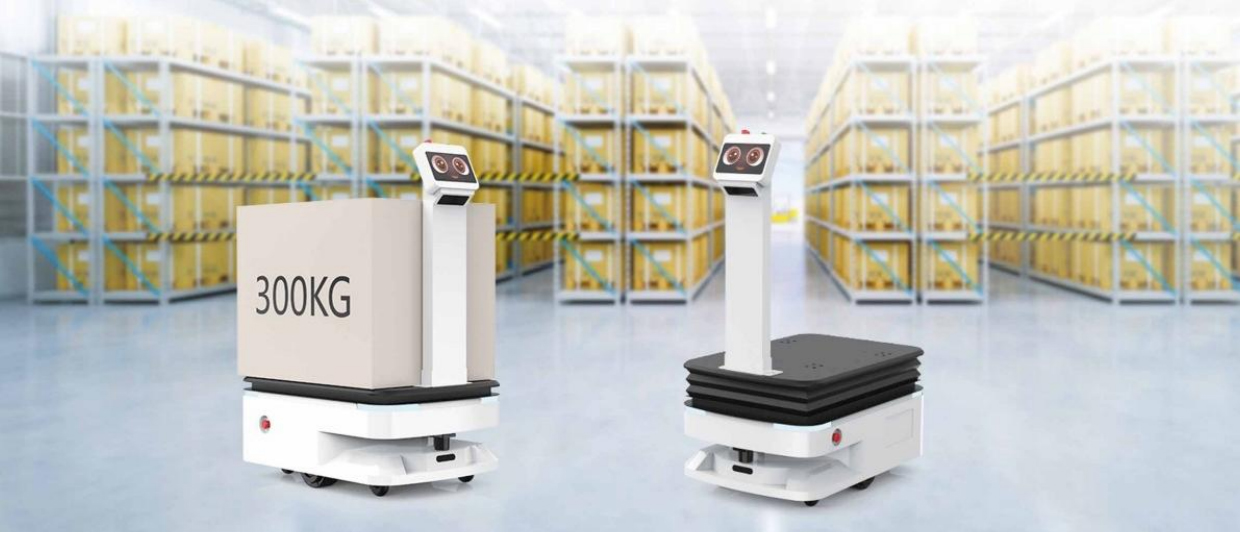

SP-AGV Pro Factory Delivery Robots has 300kG large loading capacity, 10cm lifting height, equippedwith Reeman self-developed SLAM 2.0 autonomous positioning and navigation system, no need to pastethe code, hih-precision navigation and positioning, autonomous obstacle avoidance, one-key cal.autonomous ride on the lift (optional), Open SDK platform, provide APl interface.support customized development services, to meet the handling needs of different factories

Extra Large Load Capacity

Extra Large Load Capacity

Large load capacity for a widerrange of applications

Autonomous Obstacle Avoidance

Autonomous Obstacle Avoidance

Front-facing 3D cameras + laser radar forreal-time awareness of dynamic surroundings

Laser Navigation,No Code Required

Laser Navigation,No Code Required

Extremely scalable, allowing users tocustomise the upper layer of theapplication architecture accordingto their actual needs

Open SDK Platform

Open SDK Platform

Provide APl interface, supportdevelopment customization

Detailed Parameters

Applicable Scene

Products are widely used in factory workshops, libraries, hazardous locations, logistics and storage, special industries

Product Size

791.6mm(L)x560mm(W)x1104mm(H)

Maximum Load Capacity

300KG

Endurance

8h fully loaded, 25h unloaded

Product Weight

About 65KG

Charging Time

About 6h

Travel Speed

0.1~1m/s

Navigation Accuracy

±10cm

Product Material

Sheet metal

Gyroscope

Single-axis gyroscope

Motor Drive

5.5

Adapters

Input: AC110-240V 50-60HZ Output: 43.2V-5A

Charging Pile Parameters

Overcurrentprotection,intelligentpowerfailure,output rated voltage:432V DC Output ratedcurrent:5A

SP-AGV Pro Product Details

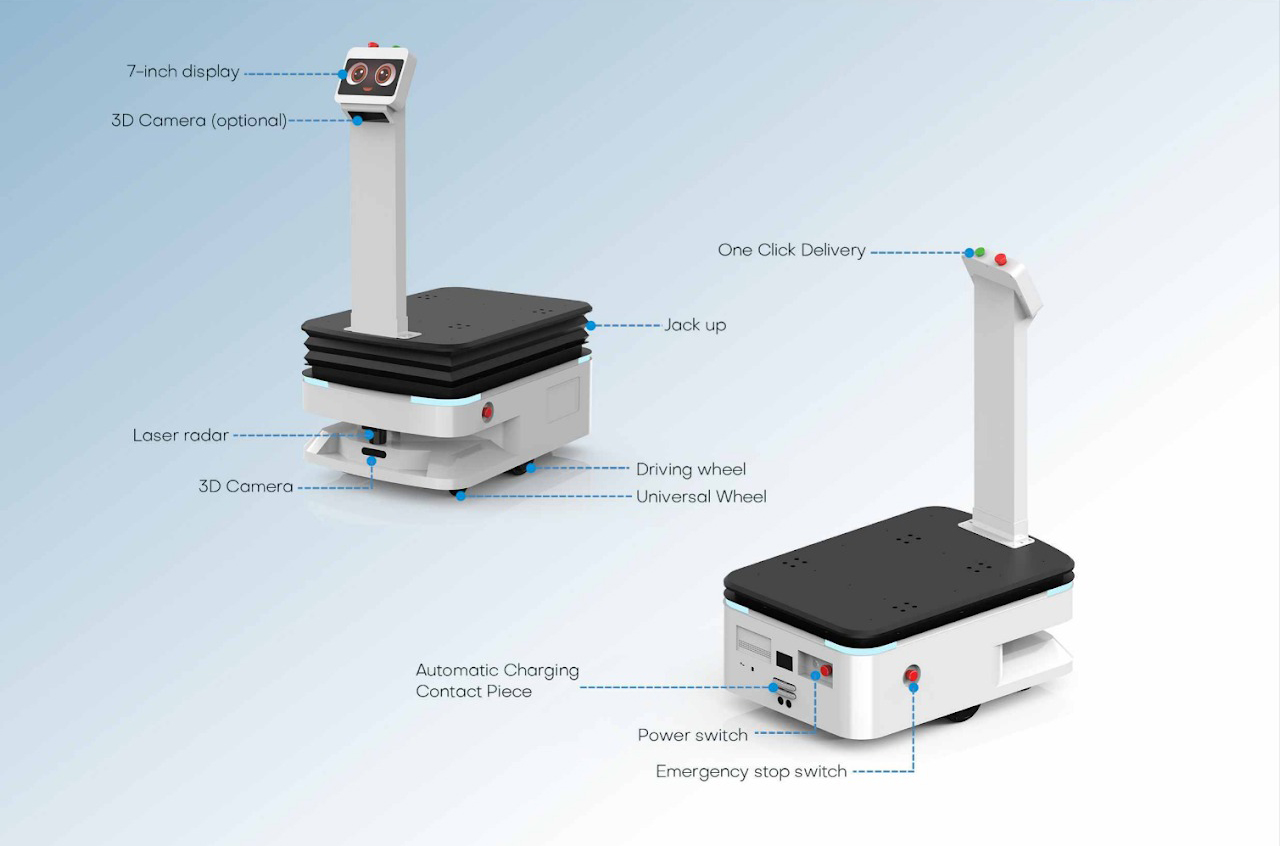

Diagram Structure

Diagram Structure
